HIGHLAND GROUP CORPORATION LIMITED

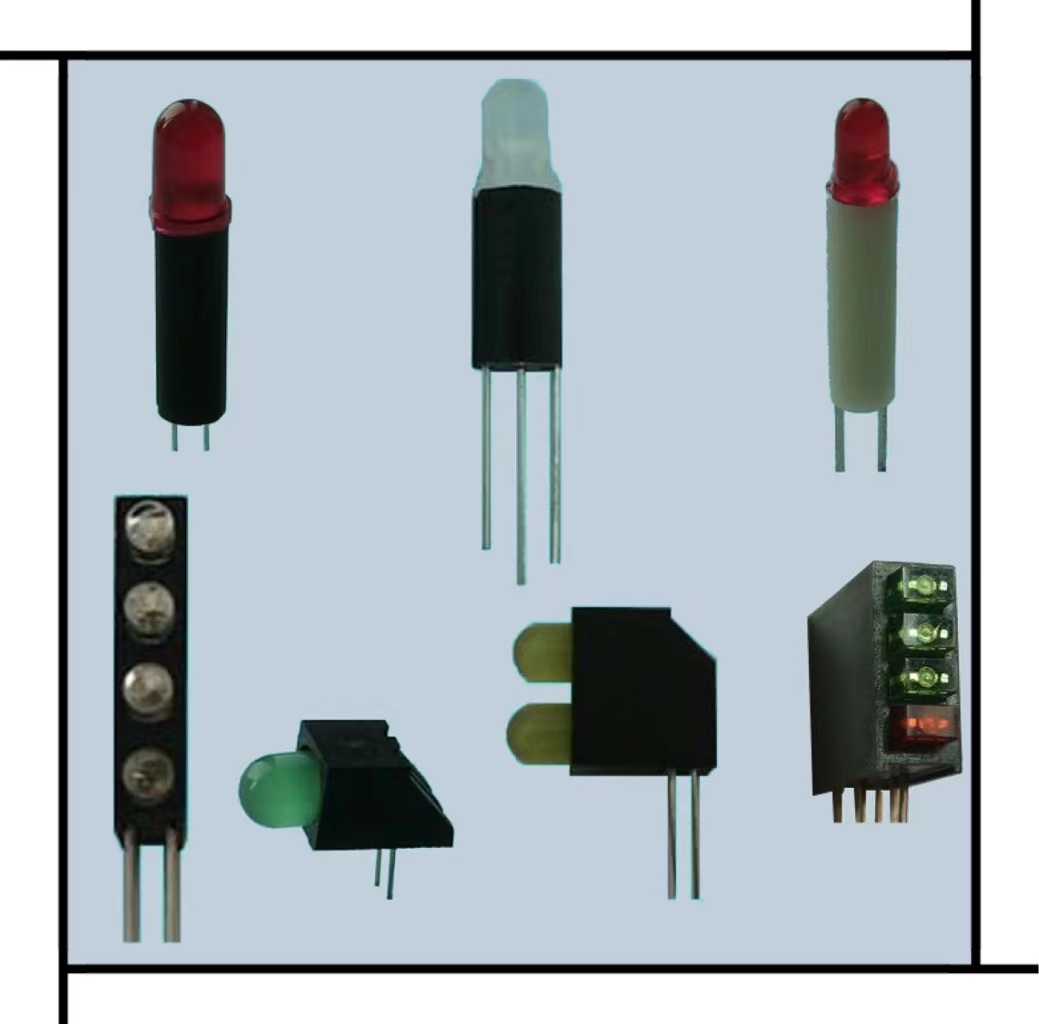

Full series of LED Spacers

H2C1-_mm, H2C3-_mm, H33-_mm, H34-_mm, H53-_mm, H54-_mm

Application

Fitting 3mm/5mm single color and bi-color LED on PCB at the appointed height.

Data

Material: N66/ PBT

Color: White/Black

Length: From 2 mm to 27 mm

Dimension

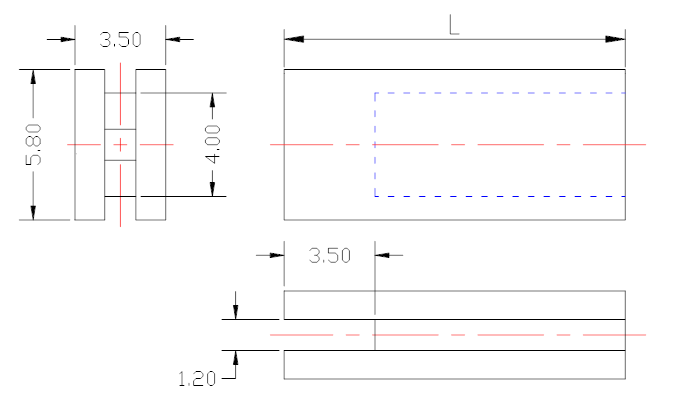

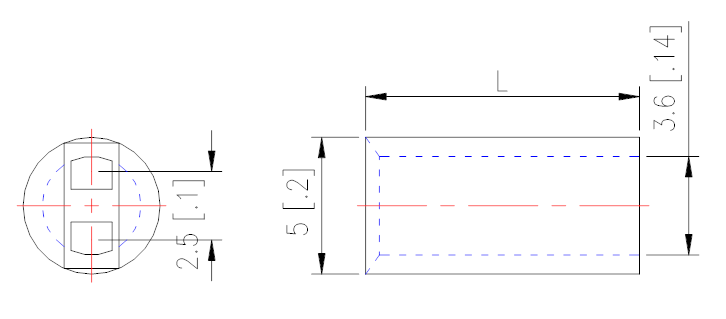

H2C1-_mm	H2C3-_mm

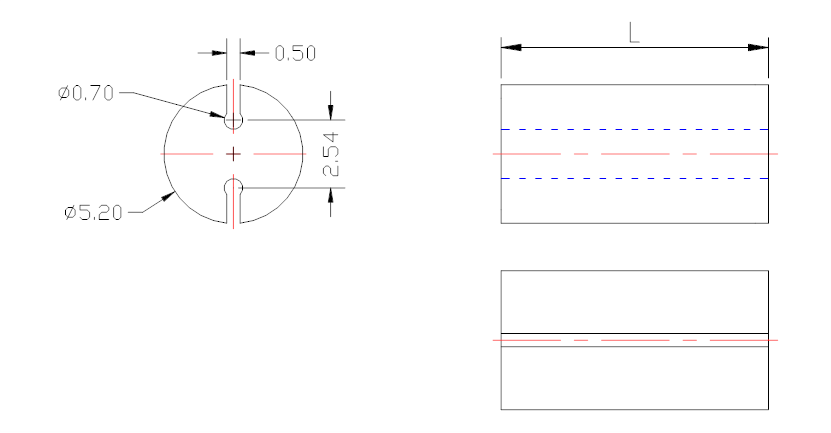

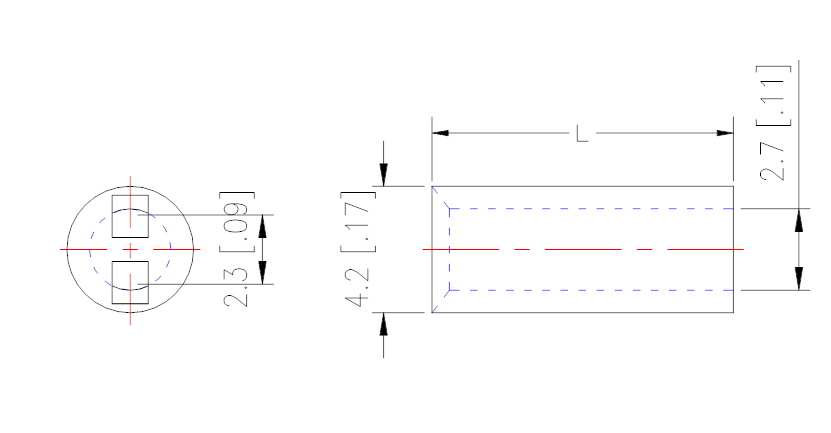

33-_mm	H34-_mm

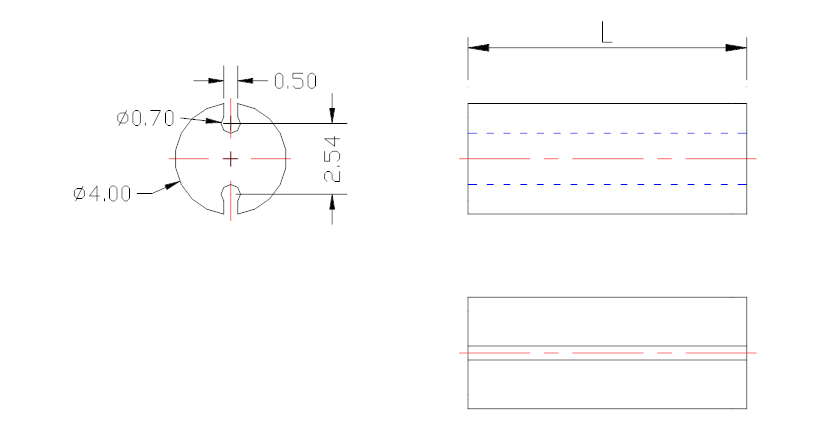

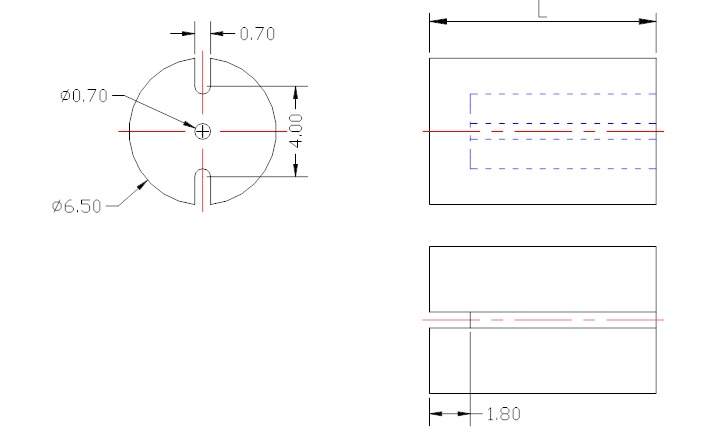

H53-_mm	H54-_mm
